Introduction

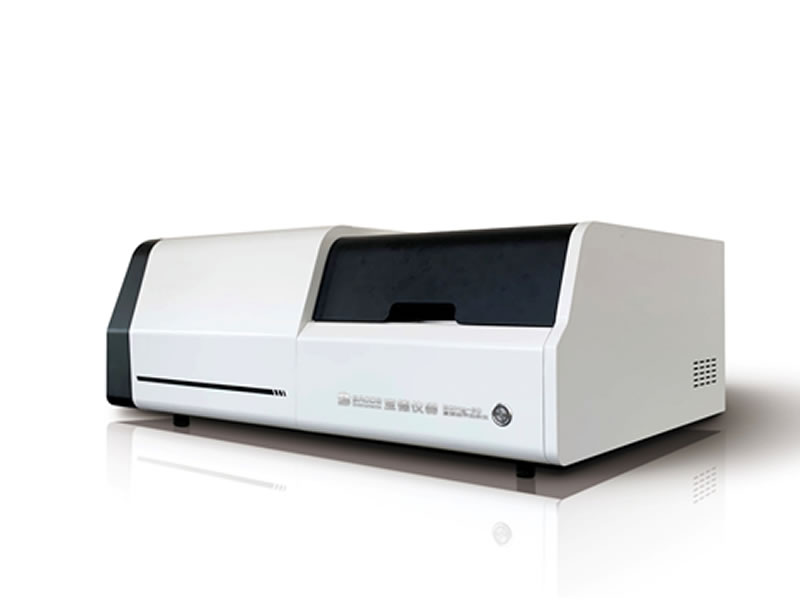

BDHg-60 Direct Mercury Analyzer is based on the principle of ETV-AAS .

Application

The BDHg-60 Direct Mercury Analyzer mainly tests mercury content in Food Safety, Environmental Protection, Disease Control and Prevention, Medicine, Agriculture, Mining, Soil, Surface Water, Groundwater, Cosmetics, Scientific Research and other fields of samples.

Characteristic

Ø Easy Operation: No need to sample digestion.

Ø High Efficiency：A complex matrix sample was tested in less than 5 minutes and a simple matrix sample takes less than 3 minutes.

Ø Excellent Repeatability and Accuracy: The patented rapid condensing unit makes the system better for removing water, less mercury memory and better repeatability.

Ø Environmentally Friendly: No need to use toxic and harmful chemicals in the whole process of analysis

Ø Intelligent platform: with a Whole-Process temperature monitoring system and a One-Button embedded program to update the latest system.

Ø Direct transfer of solid sample weight results:

Ø LAN communication interface: Ensure the system to communicate quickly and run reliably and stably.

Ø Standards: EPA7473 and SN/T 4697-2016.

Main Parameter

Ø Quality Detection Limit: ≤ 0.0005ng

Ø Repeatability: RSD ≤ 1% (1ng)

Ø Maximum Samples: Solid for 1500 mg; Liquid for 1.5 ml

Ø Linearity Range: 0~2000ng

Ø Correlation Coefficient: R ≥ 0.999

Ø Measurement Method: Peak area or peak height

Ø Calibration Method: Standard Solution or Reference Material

Ø Autosampler: Sample bits for 60 solid/liquid samples.

l Automatic Liquid Injector: Optional automatic sampler with separate 60 sample bits to prevent liquid sample volatilization.

Ø Detection Principle: ETV-AAS

Main Interface

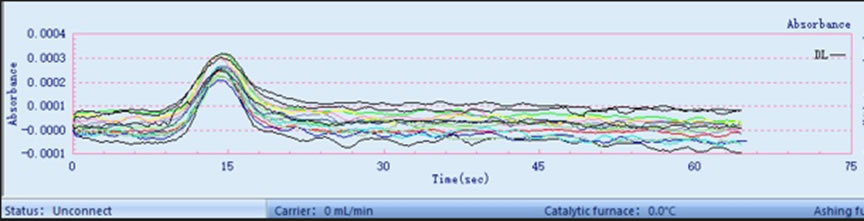

RSD

RSD

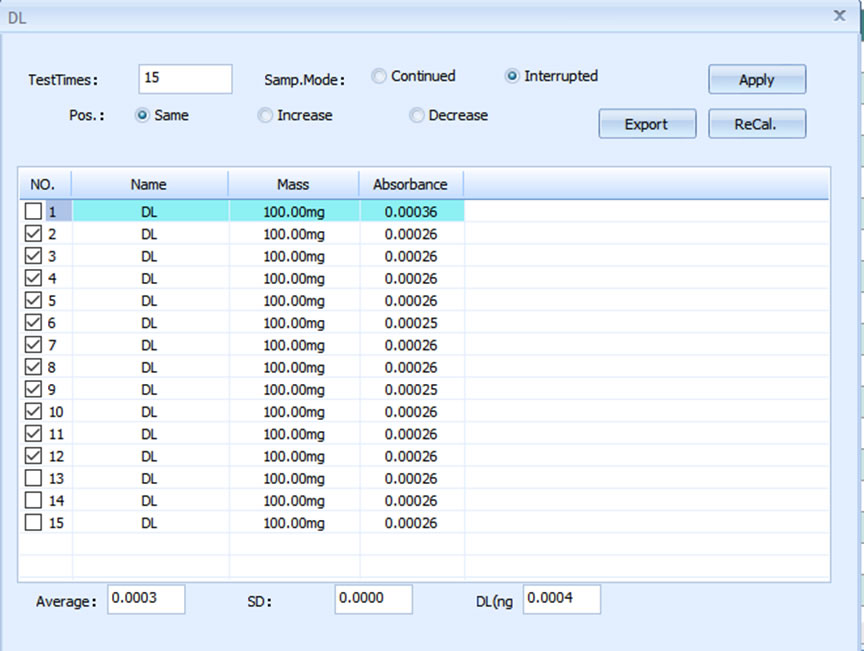

Detection Limit

Detection Limit
