Automatic Solvent Extractor is a sample pre-treatment method from solid or semi-solid samples. It meets the standard of EPA 3545A.

Application
Rapid extraction of target components from solid or semi-solid samples in soil, environmental, chemical, pharmaceutical, electronic products, agricultural and food products and some natural product samples.

Advantages

Ø Suitable for existing chromatography, chromatography-mass spectrometry Analytical instrument sample preprocessing.

Ø Solvent loading, heating, pressurization, extraction, rinsing, filtration, purification, collection, and nitrogen blowing are all completed automatically.

Ø Save time：Extraction time: < 20min， compared with Soxhlet and Ultrasonic extraction, save a lot of time.

Ø Save solvents : 11ml-100ml

Ø High pressure：Keep the solvent in liquid state to ensure the safety of extraction process.

Main Parameter

Ø Temperature: room temperature ~210℃.

Ø Pressure: 0-20MPa

Ø Volume: 1ml, 5ml, 11ml, 22ml, 33ml, 66ml, 100ml

Ø Extraction time: < 20min

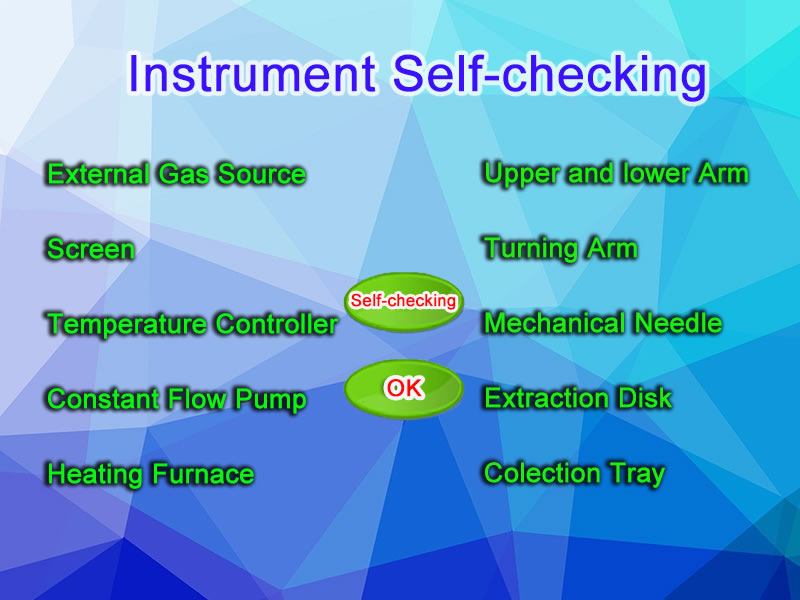

Self - Check Interface

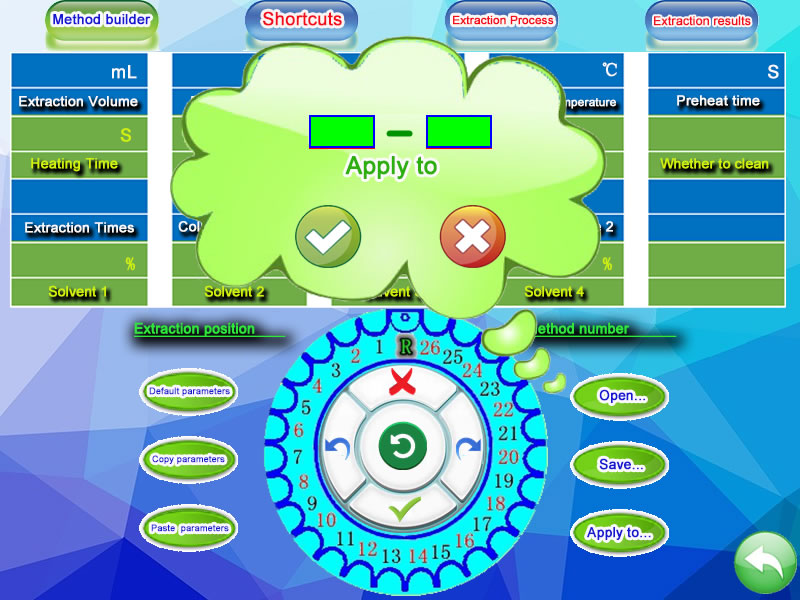

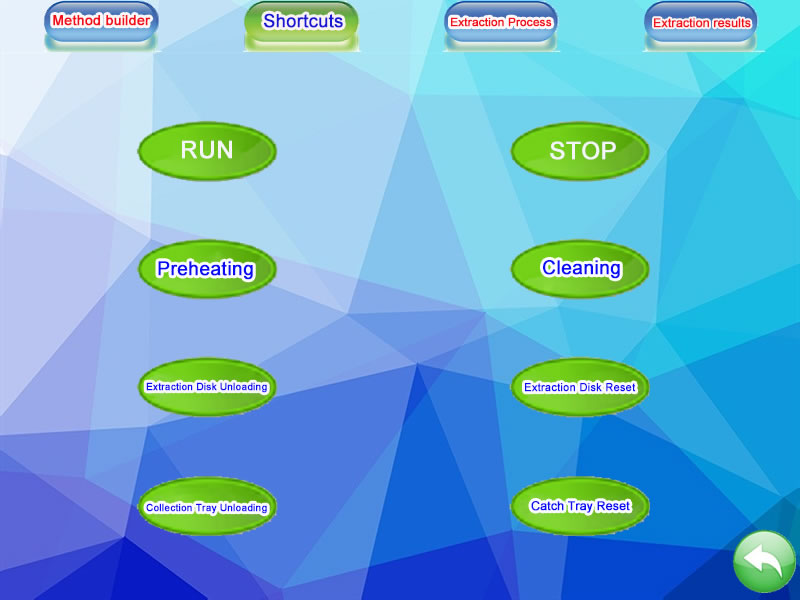

Quick Function Interface

Sample Extraction Position

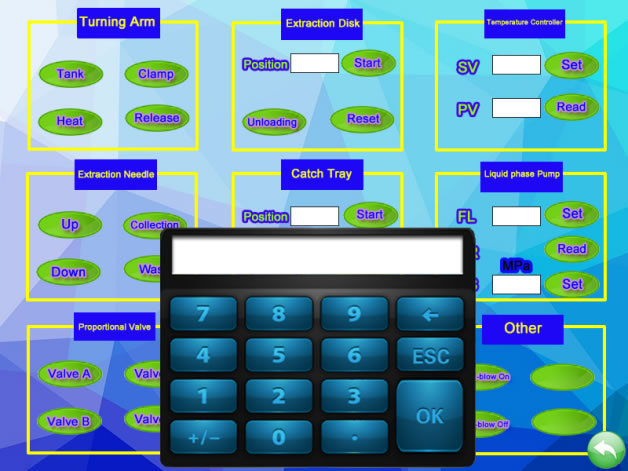

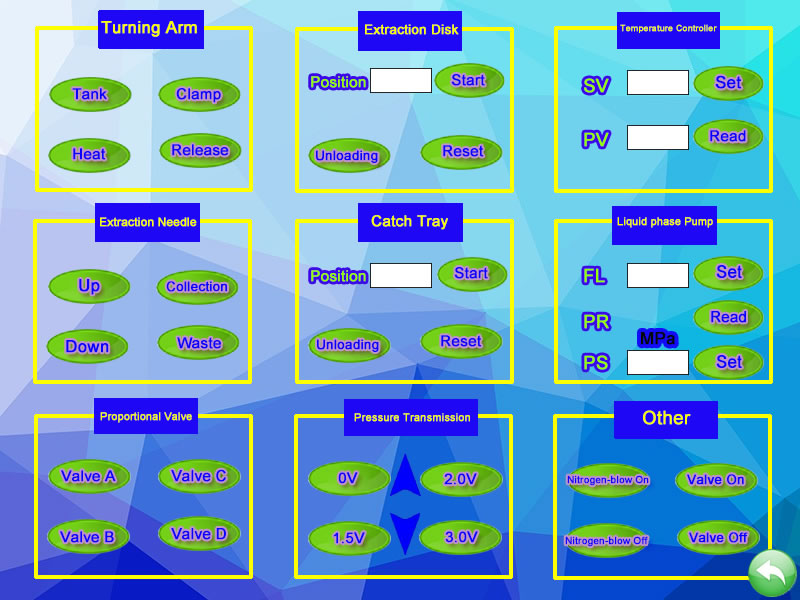

   Debugging Interface
